Bitaxe Hex 6TH Solo Miner Repair Service

Bitaxe Hex 6TH repair for compact 10-chip BM1368/BM1368PB solo miners, including board-level diagnostics, component-level repair, firmware/config review, and full load validation. This is a complete solo miner board assembly, not a standard Antminer-style hashboard, and it is often shown in AxeOS or boot logs as Gamma68.

Technical Diagnostics and Common Issues with Bitaxe Hex 6TH

Quick Symptom Checklist

• 0 ASIC detected or the ASIC chain does not initialize after boot
• Chain errors, including “chain X has 0 asic” or failed ASIC detection
• Unstable domains, low hashrate, or large swings below the expected 6TH/s range
• Overheating, fan-speed instability, or voltage regulator temperature warnings
• Sensor failures, missing temperature readings, or abnormal dashboard values
• Firmware/config errors such as “failed to read hashboard” or “voltage init error” after flashing the wrong build

Model-Specific Patterns We See on Bitaxe Hex 6TH

• Wrong identity in firmware: some units report as Gamma68 even though the board uses ten BM1368/BM1368PB ASIC chips, not a standard BM1370-based Gamma layout.
• Five-domain ASIC structure: the device uses five voltage domains with two ASIC chips per domain, so one failed domain can pull down a pair of chips or break chain initialization.

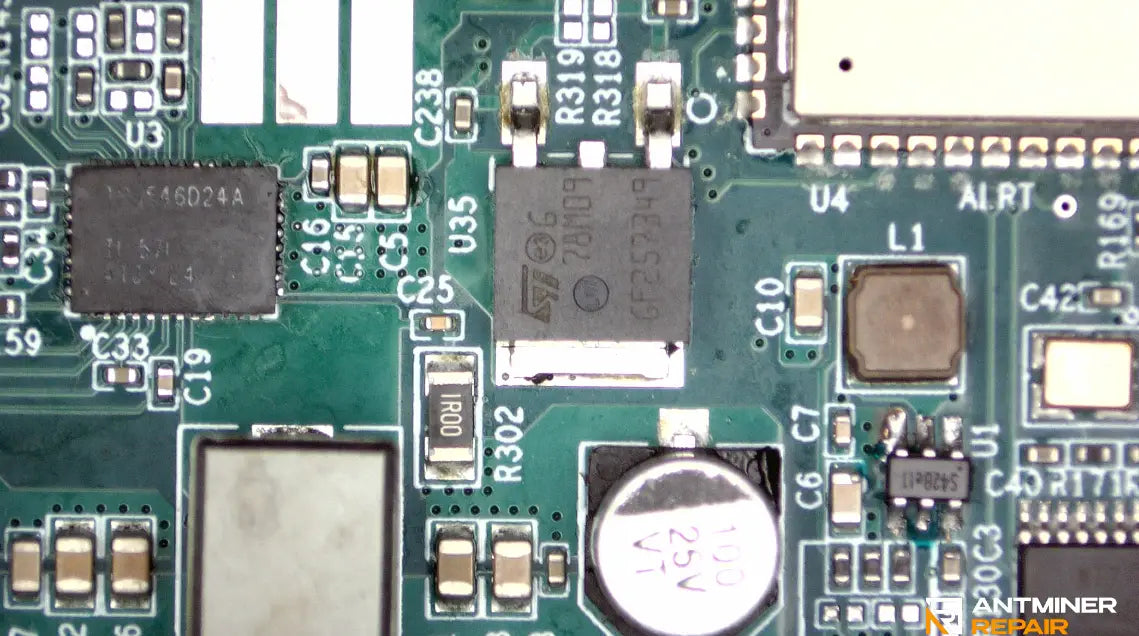

• Intermediate 6V rail confusion: the TPS546D24A section can show about 6V after the inductor, which may be normal for this board architecture instead of a failed buck regulator.
• Compact thermal layout: this solo miner can run normally around 110–130W, so weak fan airflow, dust, poor contact, or uneven thermal transfer can quickly cause unstable hashing.

Hardware Notes

Diagnostics Focus

• Power rail mapping: we verify the 12V input path, intermediate rails, 3.3V logic supply, 9V regulator output, and domain behavior before replacing ASIC chips.
• ASIC chain behavior: we isolate whether the failure comes from a broken BM1368/BM1368PB chain signal, a bad domain, a shorted chip, thermal instability, or a firmware/config mismatch.

Our Professional Repair Process

Gotchas

• Do not treat it like a standard Antminer hashboard: the Bitaxe Hex 6TH is a complete compact solo miner board assembly with its own power regulation and control-side circuitry.
• Do not treat it like a standard Bitaxe Gamma: official Gamma hardware is BM1370-based, while this Hex 6TH device uses ten BM1368/BM1368PB chips.
• Do not flash random Gamma firmware: the wrong firmware or board config can create detection, voltage, and initialization problems even when the hardware is physically repairable.

Typical Service Scenario

• A miner powers on and opens the AxeOS dashboard, but hashrate stays at zero or the ASIC chain fails during initialization.
• The unit hashes below expected output, shows unstable efficiency, or drops domains after warming up under load.
• The board assembly arrives after a wrong firmware update, failed DIY repair, damaged regulator section, or suspected BM1368/BM1368PB chip failure.

What Happens After Intake

• Intake: we document the miner condition, visible board markings, firmware screen, and customer-reported symptoms.
• Incoming inspection: we check the PCB, connectors, regulator area, fan headers, corrosion, prior rework, and thermal contact points.
• Diagnostics: we map the power rails, confirm ASIC chain behavior, inspect domain response, and compare dashboard/log data against measured voltages.
• Component-level repair: we repair failed regulators, passive components, connectors, damaged traces, and BM1368/BM1368PB ASIC-related faults where repairable.
• Cleaning + thermal interface replacement: we clean the board assembly and refresh the thermal interface where needed before load testing.
• Testing: we validate the device, then run final validation in the actual miner environment for at least 1 hour under real mining load. Extended testing is available as a separate service.

Diagnostics & Validation Equipment

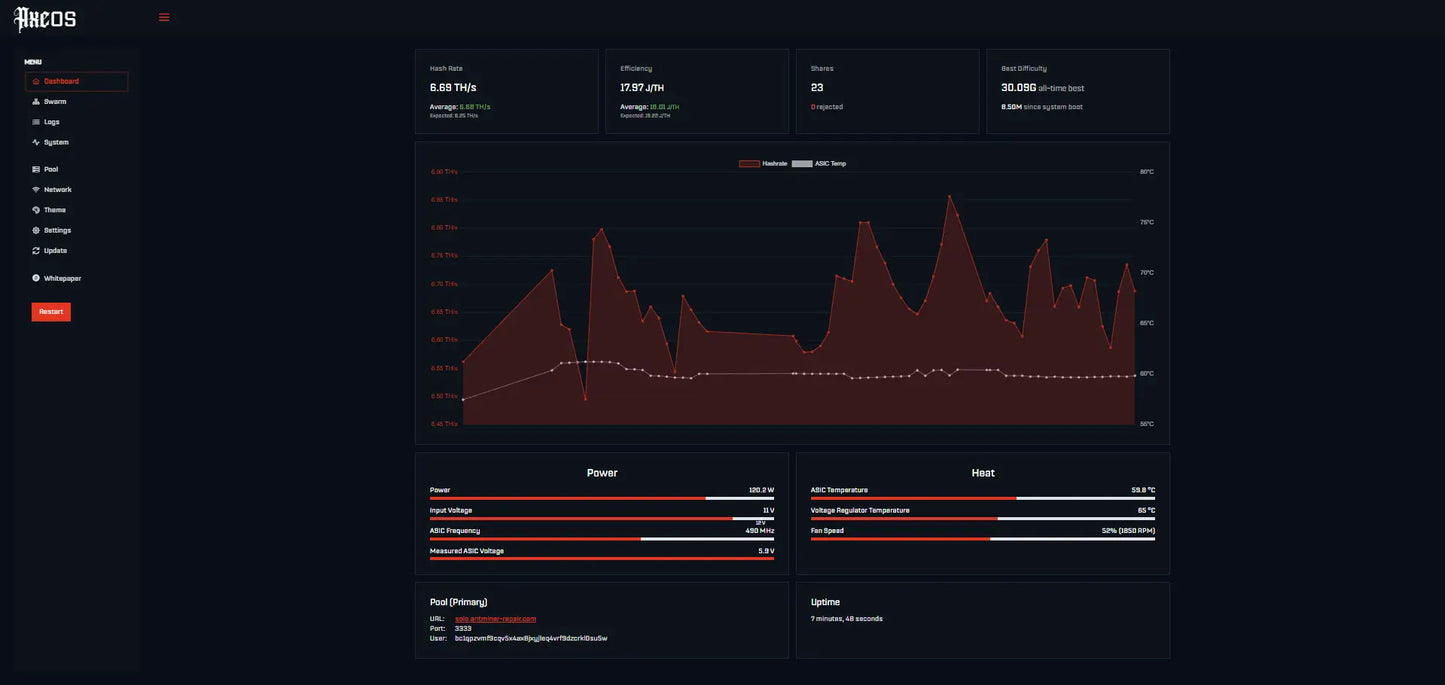

We use bench diagnostics, thermal inspection, and final real-miner load testing through the AxeOS / ESP-Miner dashboard. For Bitaxe Hex 6TH units, we pay special attention to the 10-chip BM1368 chain, the five-domain power layout, and firmware identity issues such as Gamma68 reporting.

Contact our repair team today and get your miner back to full power.
