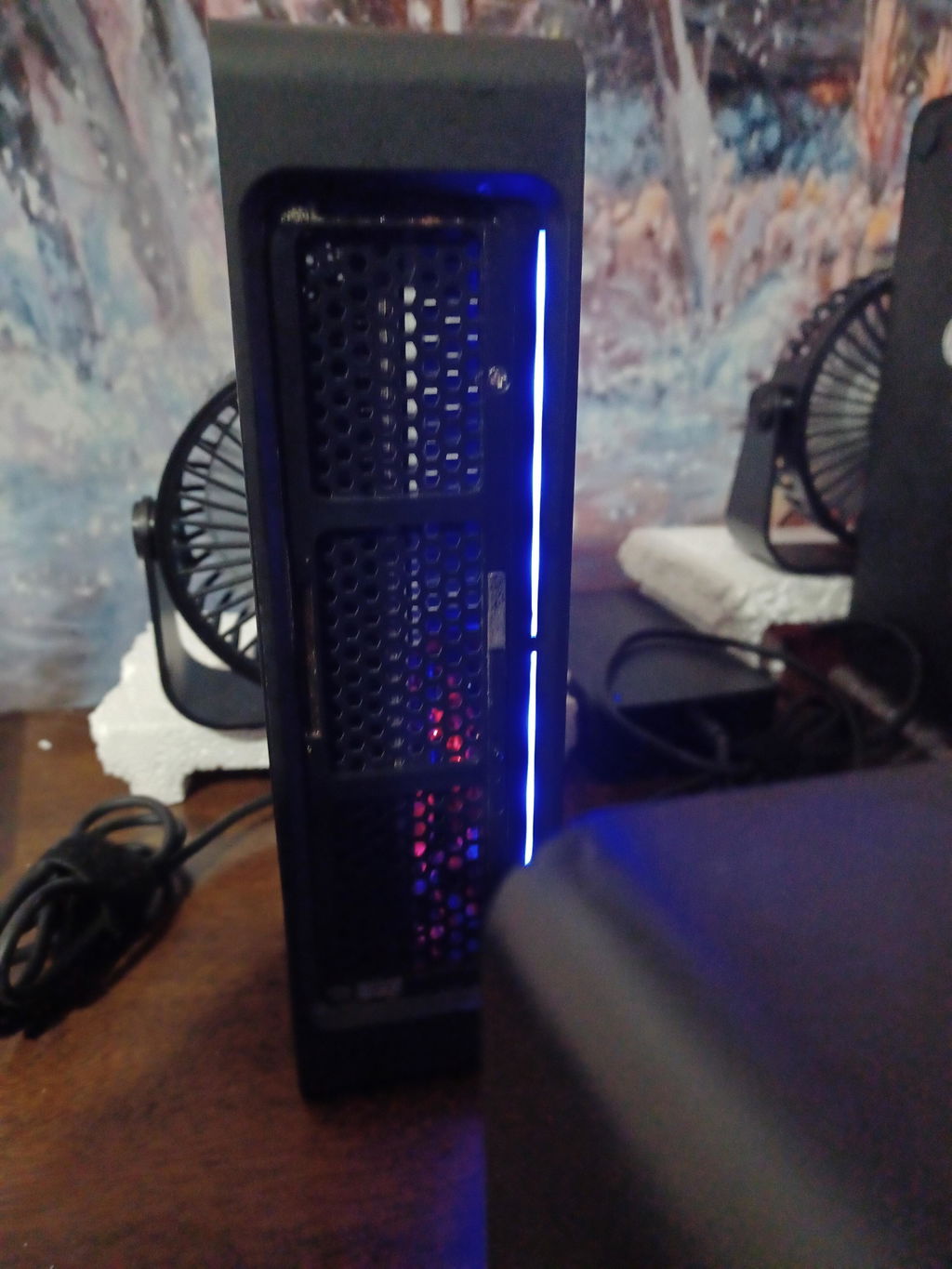

Goldshell KA Box Pro Repair Service

Goldshell-KABoxPro repair covers board-level diagnostics, component-level repair, IEN617E ASIC chip troubleshooting, thermal service, and load validation for the 1.6 TH/s compact Kaspa solo miner.

Technical Diagnostics and Common Issues with Goldshell-KABoxPro

Quick Symptom Checklist

• 0 ASIC detected or no active hashing from the internal board assembly
• Domain or chip detection errors across the 18-domain ASIC layout
• Unstable hashrate, sudden drop from the expected 1.6 TH/s range, or repeated low-hash operation
• Operating temperature outside the expected 75–85°C working range
• Temperature sensor/readout failure, including the exact KABoxPro log message Failed to get temperatures!!

Model-Specific Patterns We See on Goldshell-KABoxPro

• Temperature read failure with misleading chip-map indication. A common KABoxPro symptom is the log message Failed to get temperatures!!. In some cases, the chip map may highlight the first chip in red, but that does not automatically mean the first IEN617E chip is bad. The logs, temperature sensor path, power rails, and domain behavior must be checked before replacing the chip.
• VRM failure caused by overheating. One of the frequent KABoxPro failures is VRM damage after sustained high-temperature operation. This can cause unstable ASIC core voltage, failed initialization, hashrate dropouts, or full hashing failure even when the ASIC chips themselves are not the root cause.
• Domain-level instability. The internal ASIC layout is 18 domains with 2 IEN617E chips per domain, so one unstable domain can cause partial detection, unstable hashing, temperature read errors, or a complete hashrate drop depending on how the firmware handles the fault.
• Thermal interface degradation. KABoxPro units can lose stability when factory thermal compound dries out, spreads unevenly, or stops transferring heat properly from the ASIC area and VRM section to the heatsink structure.

Hardware Notes

Diagnostics Focus

• IEN617E chip and domain isolation. We focus on the 36-chip / 18-domain layout, looking for weak domains, unstable chips, broken signal paths, and failures that appear only after the miner heats up.
• Power and thermal validation. We verify 12V input stability, onboard power rails, ASIC core voltage behavior, thermal interface condition, fan response, and stable operation in the 75–85°C working range.

Our Professional Repair Process

Gotchas

• This is not a removable Antminer-style hashboard. Goldshell-KABoxPro is a compact solo miner, so diagnostics must treat it as a complete internal board assembly with shared power, cooling, controller, and ASIC sections.
• Thermal contact is critical. Small case, dense ASIC layout, and 36 IEN617E chips mean bad thermal interface or uneven heatsink pressure can turn a small issue into unstable domains and dead hashing. Mini miners, maximum drama.

Typical Service Scenario

• The KABoxPro powers on but does not produce stable hashrate, often due to weak IEN617E chips, failed domains, or power rail instability.
• The miner reaches normal temperature but becomes unstable, drops hashrate, or starts showing ASIC/domain errors after warm-up.
• The device was operated in dusty air, poor ventilation, high ambient temperature, or with weak power cabling, causing thermal and power stress on the internal board assembly.

What Happens After Intake

• Intake: We document the device condition, power connectors, fan condition, visible damage, customer-reported symptoms, and firmware/log behavior when available.
• Incoming inspection: We check the chassis, internal board assembly, connectors, dust contamination, corrosion, thermal interface condition, and signs of overheating.
• Diagnostics: We test 12V input, onboard rails, ASIC communication, domain behavior, IEN617E chip stability, sensor readings, and fan/thermal behavior.
• Component-level repair: Failed ASIC chips, voltage components, sensors, connectors, passive components, damaged traces, or unstable domain-related components are repaired or replaced when possible.
• Cleaning and thermal service: We clean contamination and replace degraded thermal interface material when the miner condition requires it.
• Validation: We use STASIC / ASIC REPAIR diagnostic tools where applicable, then run the repaired device for at least 1 hour in a real miner under load. Extended testing is available as a separate service.

Diagnostics & Validation Equipment

We use professional diagnostic equipment such as STASIC and ASIC REPAIR testers for board-level fault isolation where applicable, then confirm final behavior in a real mining setup under load. For Goldshell-KABoxPro, final validation is important because case airflow, heatsink pressure, thermal interface quality, and power input stability can change the result after reassembly.
