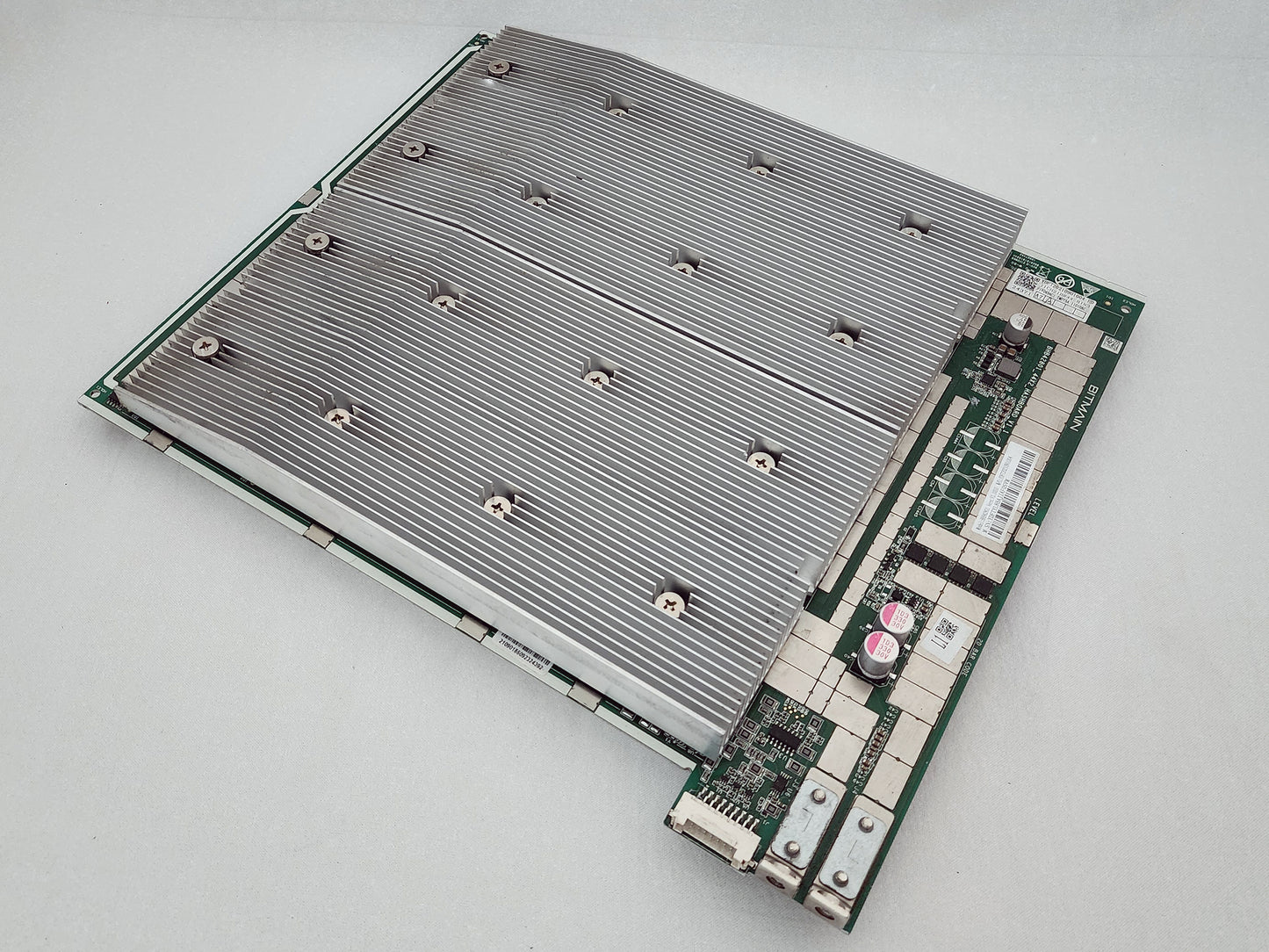

• Antminer S19 88-chip hashboard, heatsink plate side, angled view

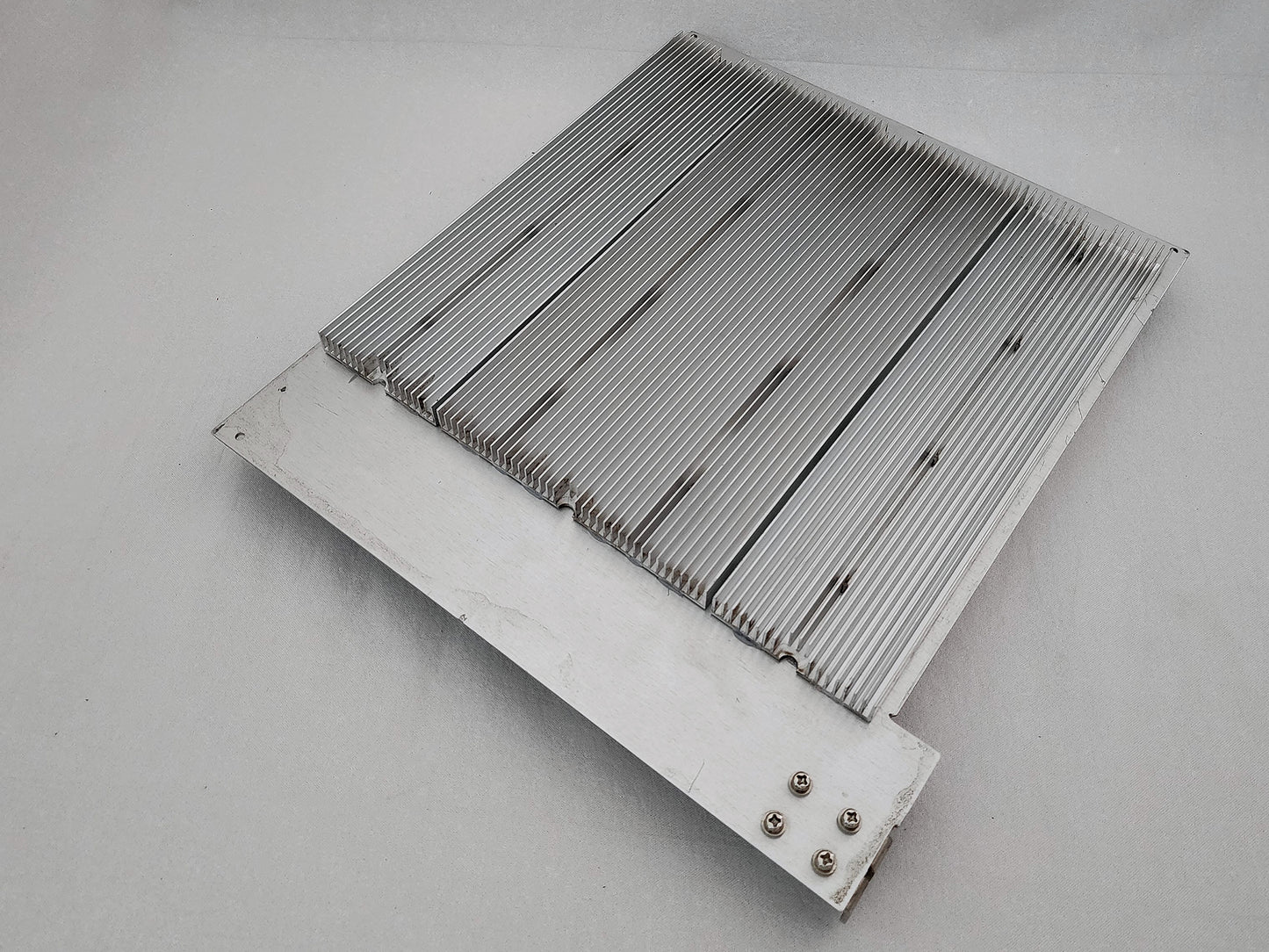

  • Antminer S19 88-chip hashboard reverse side with rows of ASIC heatsinks

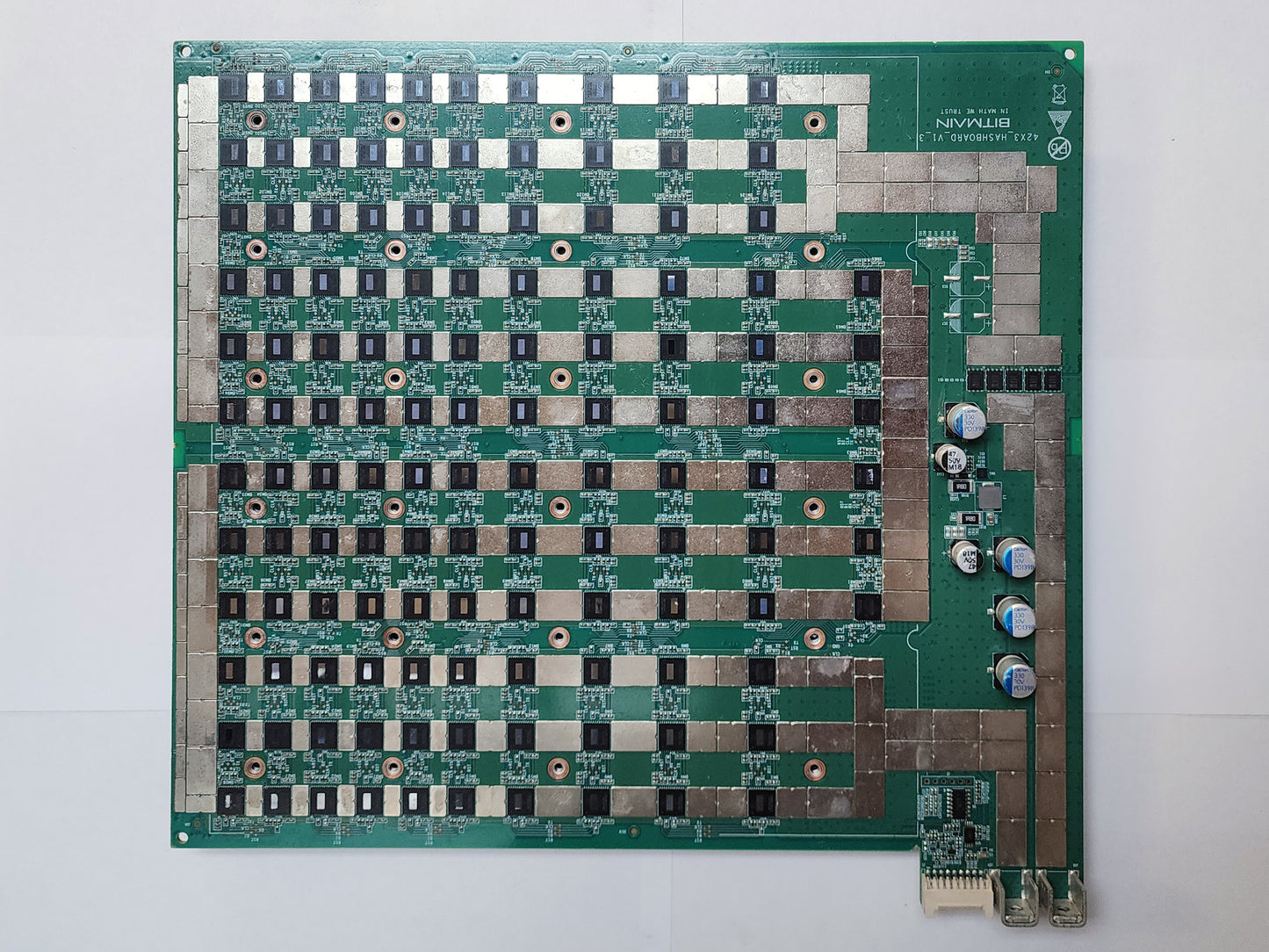

  • Bare Antminer S19 88-chip hashboard PCB with heatsinks removed
1 3

BITMAIN

Antminer S19 88 ASIC Hashboard Repair Service

Antminer S19 88 ASIC Hashboard Repair Service

$120.00 USD
$120.00 USD
Sale
Shipping calculated at checkout.

By placing your order you agree to our Terms of Service, Warranty Terms and Refund Policy.

Repair guide last verified:

✅ Nationwide mail-in repair service (USA)
✅ Turnaround: 4–5 business days
✅ Board-level diagnostics + repair
✅ Full load testing before return shipment
✅ Warranty: 30 days (extendable)
✅ Bulk discounts available
🧩 Supported issues
• Dead or missing hashboard
• Chain errors & unstable domains
• Power circuit faults (LDOs, shorts)
• Sensor & signal line failures
USA-based repair lab (no outsourcing)
🔬 Component-level repair (ASIC chips, LDOs, power circuits, SMD parts)
🔥 Burn-in testing (under load)
ℹ️ Final repair cost may change after diagnostics. We always confirm before proceeding.
View full details

Antminer S19 88 ASIC hashboard repair is a USA-based board-level service for failed S19 hashboards with 88 ASIC chips. We perform board-level diagnostics, component-level repair, EEPROM checks, and load validation to confirm the board can hash reliably before return.

Technical Diagnostics and Common Issues with Antminer S19 88 ASIC

Quick Symptom Checklist

  • 0 ASIC detected or missing ASIC count on one chain
  • Chain errors during miner startup or autotune
  • Unstable domains under load
  • Overheating or abnormal temperature readings
  • Sensor failures or EEPROM-related detection issues
  • Log errors such as “failed to read hashboard”, “chain has 0 asic”, or voltage initialization errors

Model-Specific Patterns We See on Antminer S19 88 ASIC

  • Boards that detect correctly on a tester but drop ASIC count in a real miner under heat and load.
  • Domain instability caused by weak power stages, damaged signal components, or poor previous repair work.
  • Hashboards with EEPROM or sensor issues that prevent proper chain initialization.

Hardware Notes

Specification Details
Miner model Bitmain Antminer S19 series
ASIC count 88 ASIC chips per hashboard
Board type Aluminum-base S19 hashboard
Common failure area ASIC chain, domains, temperature sensing, EEPROM, and power regulation circuits
Validation method Bench tester validation followed by real miner load testing

Diagnostics Focus

  • ASIC chain continuity, signal path stability, and domain-level voltage behavior.
  • Sensor, EEPROM, and load stability checks before the board is approved for return.

Our Professional Repair Process

Gotchas

  • S19 88 ASIC boards may pass basic tester checks but still fail under real mining load if a domain is thermally unstable.
  • Previous repair attempts can hide lifted pads, weak solder joints, or damaged signal components.

Typical Service Scenario

  • A miner reports one missing chain after startup even though the board appears visually clean.
  • The board hashes at first, then drops hashrate after heat builds up.
  • The hashboard arrives after operation in dusty, humid, or poorly ventilated conditions.

What Happens After Intake

After intake, we perform incoming inspection, diagnostics, component-level repair, cleaning, thermal interface service when required, bench validation with STASIC or ASIC REPAIR testers, and final testing in a real miner for at least 1 hour under load. Extended testing is available as a separate service.

Diagnostics & Validation Equipment

We use STASIC and ASIC REPAIR testers for controlled bench diagnostics, then validate repaired S19 88 ASIC hashboards in a real Antminer under mining load before approval.

Contact our repair team today and get your miner back to full power.

Technical FAQ

Q: Can you repair an Antminer S19 88 ASIC hashboard that shows 0 ASIC detected?
A: Yes. We diagnose the ASIC chain, signal path, power domains, EEPROM, and temperature sensor circuits to find why the S19 88 ASIC hashboard is not initializing.
Q: Do you repair S19 88 ASIC hashboards with unstable domains?
A: Yes. Unstable domains are a common repair scenario. We check voltage behavior, damaged components, solder joints, and ASIC chain communication.
Q: Can you fix an Antminer S19 88 ASIC hashboard with EEPROM or sensor errors?
A: Yes. We inspect EEPROM-related detection issues and temperature sensor failures when they prevent proper chain startup or stable hashing.
Q: How long does Antminer S19 88 ASIC hashboard repair usually take?
A: Standard turnaround is typically 4-5 business days after the board is received and checked in.
Q: Is the repaired S19 88 ASIC hashboard tested before return shipping?
A: Yes. After component-level repair, we use bench validation and real miner load testing before the board is approved for return.
