Bitaxe 700 Repair Service

Bitaxe 700 solo miner repair for BitaxeHex, SupraHex, TinyChipHub SupraHex, and AxeOS-based 701/702/703 devices with board-level faults, firmware boot issues, I2C device errors, fan controller failures, 3.3V shorts, Vcore regulator problems, and BM1368 ASIC detection faults.

Technical Diagnostics and Common Issues with Bitaxe 700

Quick Symptom Checklist

• BitaxeHex, SupraHex, or Bitaxe 701/702/703 does not power on, shows a black screen, or reboots after startup.
• 3.3V rail short to ground, hot U2 LDO, hot U9 EMC2302, excessive current draw, or power supply current limit.
• Device EMC2302 (0x2f), I2C transaction unexpected nack detected, or fan controller I2C failure.
• VCORE_init(86): voltage_domains not defined, SYSTEM_init_peripherals(107): VCORE init failed!, or Expected hashrate: 0H/s.

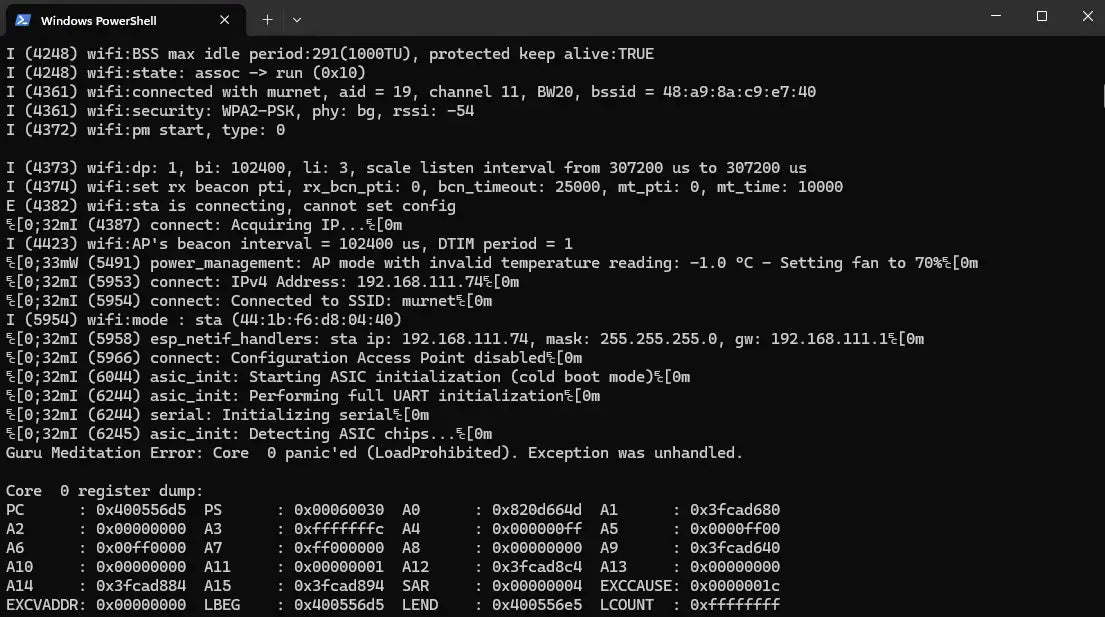

• task_wdt: Task watchdog got triggered, CPU 0: taskLVGL, Guru Meditation Error, or EXCVADDR: 0x00000000.
• Bitaxe_SELF_TEST, POWER test failed, Power Draw Failed, invalid temperature reading, or Wi-Fi/AP mode works but the miner does not hash.

Model-Specific Patterns We See on Bitaxe 700

• EMC2302 / fan controller failure: U9 EMC2302 can fail, overheat, short, or stop responding on the I2C bus. Typical logs include Device EMC2302 (0x2f), EMC2302_init, and ESP_ERROR_CHECK failed.
• Vcore / TPS546 initialization failure: the device may boot, but ASIC voltage does not initialize correctly. Typical logs include voltage_domains not defined, VCORE init failed, Set ASIC voltage 0.000V, or TPS546 READ_VOUT abnormal readings.
• Wrong board profile or firmware image: some devices show Custom Board Version: 000, wrong model detection, missing voltage domain configuration, or Expected hashrate: 0H/s after flashing an incompatible AxeOS / ESP-Miner build.
• BM1368 detection and self-test faults: the miner may start ASIC initialization but fail during chip detection, domain hashrate reporting, factory self-test, or power validation.

Engineer’s Note from Antminer Repair

On Bitaxe 700-series devices, many failures we see are related to aggressive voltage and frequency settings without matching cooling improvements. These compact solo miners can run well when tuned properly, but pushing BM1368 chips beyond stable parameters while using the stock fan, poor airflow, or a weak power supply can lead to Vcore instability, hot regulators, failed self-tests, random reboots, invalid sensor readings, and ASIC detection problems.

Before we treat a BitaxeHex or SupraHex as a dead board, we look at the full picture: firmware version, board profile, voltage-domain configuration, power draw, fan behavior, temperature readings, and whether the miner was overclocked before the failure. That context often explains why the same device can boot into Wi-Fi/AP mode but still fail to hash.

Hardware Notes

Diagnostics Focus

• Power and voltage-domain validation: we focus on 12V input stability, 3.3V logic rail shorts, LDO overheating, TPS546 / Vcore behavior, and whether AxeOS can load the correct voltage-domain profile.
• I2C, firmware, and ASIC initialization path: we check EMC2302 communication, SDA/SCL behavior, board version detection, firmware compatibility, and BM1368 ASIC detection under controlled load.

Our Professional Repair Process

Gotchas

• Wrong firmware can look like hardware failure: Custom Board Version: 000, voltage_domains not defined, and Expected hashrate: 0H/s can be caused by an incompatible image or missing board profile, not only by a dead ASIC circuit.
• Small board, dense failure area: U2, U9, TPS546-related circuits, the ESP32-S3 area, fan control, I2C lines, and ASIC power rails are packed tightly. Heat damage, shorts, and previous rework can overlap in the same small region.

Typical Service Scenario

• The miner powers on but shows Device EMC2302 (0x2f), I2C NACK errors, invalid temperature readings, fan problems, or boot-loop behavior.
• The miner connects to Wi-Fi or opens AP mode, but does not hash because ASIC initialization, Vcore setup, or board profile detection fails.
• The device fails self-test with POWER test failed, Power Draw Failed, abnormal measured power, or unstable BM1368 domain hashrate.

What Happens After Intake

After intake, we treat each Bitaxe 700 device as a complete compact miner, not as a removable industrial hashboard. We document the board revision, firmware version, visible damage, power input behavior, fan response, display state, Wi-Fi/AP mode behavior, and the exact AxeOS / ESP-Miner log messages shown during boot.

From there, we separate firmware-profile problems from hardware faults. That may include ESP32-S3 recovery, firmware reflash, correct board profile upload, AxeOS log analysis, I2C device verification, Vcore startup checks, 3.3V rail isolation, EMC2302 fan controller testing, and BM1368 ASIC initialization review. When board-level repair is needed, we focus on the failed circuit instead of replacing parts blindly.

Final validation is done as a working solo miner: the device must boot cleanly, load the correct profile, report valid temperature and fan behavior, initialize the ASIC path, connect to the network, and hash under real mining conditions. Extended runtime testing is available as a separate service.

Diagnostics & Validation Equipment

For Bitaxe 700 devices, validation is based on controlled bench power testing, board-level measurement, AxeOS / ESP-Miner log analysis, firmware recovery tools, thermal inspection, and real mining-load verification. Industrial hashboard testers are useful for Antminer-style boards, but Bitaxe 700 repair requires compact-board diagnostics around the ESP32-S3 control path, TPS546 / Vcore behavior, EMC2302 fan control, and BM1368 initialization.
