Why Antminer S21 Hydro Overheats Even When the Pump Is Working

Hydro-cooled Bitcoin miners like the Antminer S21 Hydro deliver huge hashing power, but they depend on a healthy liquid loop. When you see high chip temperatures or frequent shutdowns despite the pump running, the root cause is usually a coolant loop issue – not the fan. 🔧 This article explains the common warning signs (high temps, “ΔT too large” errors, flow alerts), the typical causes (flow restrictions, air, scale, hose swaps, sensor faults), and how to diagnose and fix the problem. We’ll also cover when it’s time to bring in professional hydro miner repair or hashboard service. Read more mining maintenance tips in our Articles section.

Common Symptoms of Overheating

• ⚠️ High temperature alarms & shutdowns: Chips run hotter than normal and may trigger errors or automatic stop. Logs might show messages like “ERROR_TEMP_TOO_HIGH: over max temp” or miners will abruptly halt.
• ⚠️ Large inlet–outlet ΔT: The miner’s log may report “difference between inlet and outlet is too large” (for example, a 16–17°C gap), even though the pump is on. This usually indicates poor heat exchange.
• ⚠️ Frequent reboots or no hashing: Overheating can cause the miner to restart constantly or refuse to hash properly. (Similar issues appear across hydro models like S19 Hydro, S21+, XP Hydros, etc. - they all quit if coolant can’t carry away heat.)
• ⚠️ Flow or coolant errors: The web interface may flash flow-sensor warnings, or report “Water flow” errors. (A stuck air bubble or clogged strainer can make the miner think flow has dropped.)
• ⚠️ Normal ΔT (outlet – inlet) under good conditions is typically 8–12 °C. If it reaches 15+ °C (e.g., 16–17 °C as commonly reported in logs), it almost always signals restricted flow, air pockets, or scale buildup — leading to the “difference too large” error.

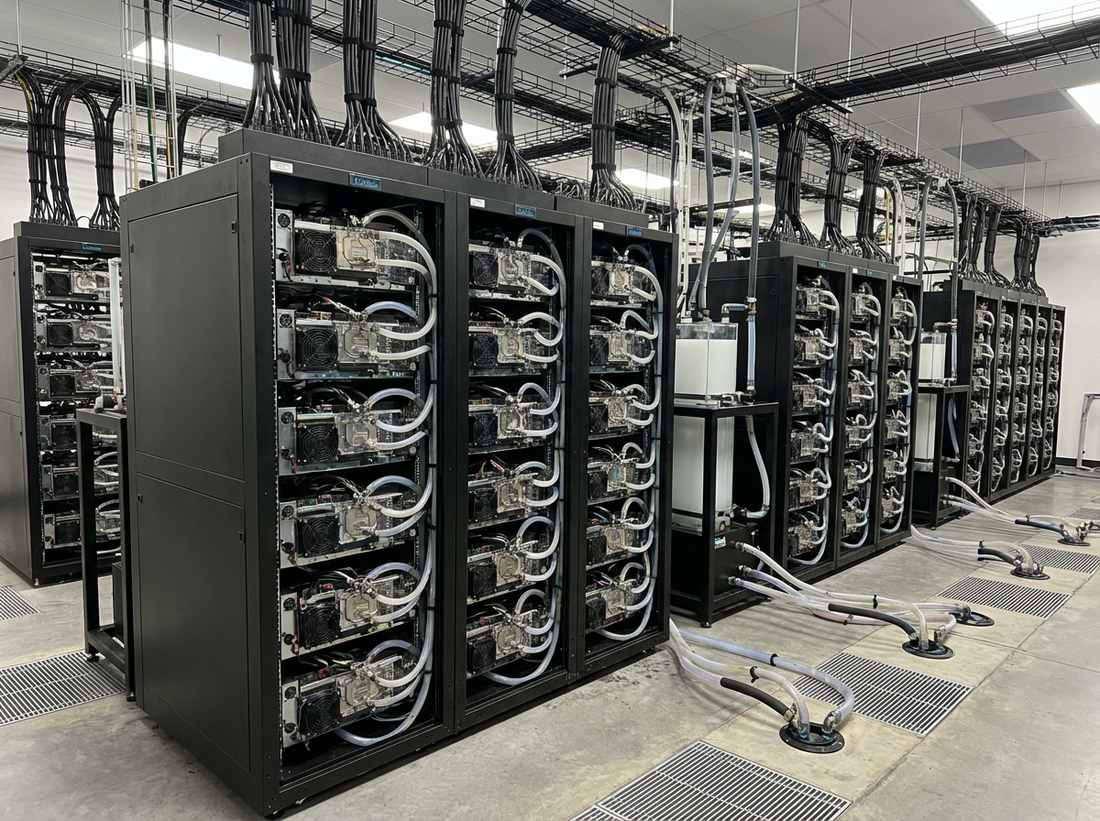

These symptoms mirror what happens in scaled-up mining farms: even a thin layer of mineral deposits can choke the cooling and produce chip overheating or automatic shutdowns. In other words, any impairment in the liquid loop can give the same result.

Why It Overheats (Even With the Pump Running)

Several issues can starve the miner of cooling even though the pump motor is spinning. Common causes include:

• 🔧 Low coolant flow rate: The pump might run, but valves or filters could be closed/clogged, lowering the actual flow. If flow falls below the spec (around 8–10 L/min), heat builds up. A restricted radiator or dirty filter is a usual culprit. One miner noted that a rising ΔT often pointed to “inadequate coolant flow rate” from sediment or pump wear.
• 🔧 Air trapped in the loop: Air pockets seriously reduce cooling efficiency. Bubbles in the cold plates or radiator mean much of the surface isn’t wet, so the miner overheats despite pump movement. Air locks can also fool the flow sensor. Always bleed the loop and ensure all air is vented out.
• 🔧 Clogged/scale-fouled heat exchangers: Over time, minerals or corrosion can coat the cold plates and pipes. Even a thin layer of scale will “destroy heat transfer”. This dramatically raises ΔT and temp alarms. If you suspect scale (common with hard water), a thorough flush and descaling is needed. For professional chemical flush and passivation of cold plates, check our Hydro Miner Cleaning & Descaling service.
• 🔧 Reversed or misconnected hoses: If the inlet/outlet hoses are swapped or an isolation valve is partly closed, hot return water may recirculate. Ensure inlet is at the bottom connector and outlet at the top as intended. Bitmain’s support also warns to check that all valves are open and water temperature is normal on high-temp alerts.
• 🔧 Sensor/controller errors: A faulty flow meter or temperature sensor can trigger false alarms. Likewise, outdated firmware has occasionally caused erratic readings. Make sure the miner’s firmware is up to date, and consider swapping a suspicious flow sensor if nothing else explains the fault.
• 🔧 High inlet or ambient heat: If your chiller or water source is too warm (or the room is very hot), even good flow may not keep the chips cool. For example, WhatsMiner notes that reducing inlet water temperature and boosting flow can fix high-temp errors. Inlet coolant temperature should ideally be kept ≤35–40 °C for optimal performance and minimal ΔT (Bitmain officially allows 20–50 °C, but at higher inlet temps, ΔT grows quickly, leading to errors even with good flow. Miner won't start below 20 °C).

Each of these problems can cause the S21 Hydro (or any hydro miner) to accumulate heat even though the pump appears to function. Checking flow rate against the manufacturer spec (8.0–10.0 L/min at ≤3.5 bar) can help pinpoint a restriction. Also verify that you’re using the proper coolant: deionized water (pH 8.5–9.5), antifreeze (pH 7.0–9.0), or pure water (pH 6.5–7.5) as per Bitmain recommendations. Avoid tap/hard water to prevent scale and corrosion.

Diagnostic Steps to Pinpoint the Issue

• 🔍 Review log messages: Check the miner’s kernel log or web UI for errors. Look specifically for entries like “difference between inlet and outlet is too large” or “ERROR_TEMP_TOO_HIGH”. These confirm the symptoms and rule out other causes like chip errors.
• 🔍 Measure coolant flow: With the miner powered off, briefly collect water at the miner’s outlet into a bucket using a stopwatch. Aim for ≥8 L/min measured at the miner's outlet (collect in a bucket with stopwatch while pump is running). Account for elevation/head loss in long lines or multi-miner setups — real flow at the farthest unit often drops below spec. If it’s significantly less, your pump or plumbing is limited. One miner solved a ΔT issue by confirming actual flow at the miner’s elevation (should reach the 8 L/min mark) and ensuring free flow of ≥10 L/min in each branch.
• 🔍 Inspect plumbing & bleed air: Check that all valves are fully open and hoses are correctly connected (inlet to bottom port, outlet top port). Look for kinks or leaks. Bleed the system by running the pump with a manual air-bleed valve or by elevating connections to flush out trapped air.
• 🔍 Check coolant quality: Test the coolant’s temperature entering the miner. If it’s too high ( >~35°C), the miner will struggle. Also check pH and clarity. Cloudy or rusty fluid calls for a complete drain and refill. Sediment filters should be cleaned or replaced if they look clogged.
• 🔍 Verify firmware/controls: Ensure the miner’s firmware is current. Some earlier firmware had bugs affecting hydro-miner sensors. Also double-check that any aftermarket controllers or flow meters are compatible. A genuine Bitmain flow sensor should output a 5V pulse signal – if you’ve substituted parts, confirm signal integrity.

Quick Diagnostic Checklist:

1. Check logs for “difference too large” / “ERROR_TEMP_TOO_HIGH”.
2. Measure actual outlet flow (≥8 L/min?).
3. Confirm inlet/outlet hoses: bottom = inlet, top = outlet; all valves fully open.
4. Inlet temp ≤40 °C? Bleed air from loop.
5. Coolant clear, correct pH for type?
6. Firmware up to date? Genuine flow sensor (5V pulse) working?

Solutions and When to Seek Professional Help

Once you identify the cause, you can often fix the overheating yourself: flush the loop, open valves, replace bad sensors, or reinstall coolant. For clogged heat exchangers or persistent scale, descaling is essential. Our Hydro Miner Cleaning service can chemically flush and passivate the copper surfaces, restoring proper cooling efficiency. Likewise, if your pump is worn or you’re dealing with complex plumbing, installing a higher-capacity pump or adding bleed valves can help.

If you find burned ASICs or chip-detection failures (e.g. 0 hashboards recognized), you may need component-level repair. In such cases, our expert team can diagnose and fix your miner. We offer services like hydro loop inspection, hashboard repair, IC/chip replacement, and full diagnostics — see details at Antminer S21 Hydro Repair Service (we also cover other 21-series models at Antminer 21 Series Repairs). Clients often report: “Got my miner back up and running faster than through Bitmain RMA”. We provide fast 4–5 day turnarounds with guarantee (much quicker than factory RMA).

If issues persist after your own checks — don’t risk downtime. Send us your logs/photos/measurements right now for a free case analysis within 1 hour. Contact us for professional help. Our technicians specialize in S21, S19 Pro Hydro, XP Hydro and similar models — we’ll get your system back to safe temperatures quickly.

In summary: a working pump alone isn’t a guarantee of cooling if anything in the loop is off. Keep an eye on symptoms (high ΔT, temp errors, shutdowns) and systematically check flow, plumbing, sensors, and coolant quality. With proper maintenance – and expert support when needed – your hydro-cooled miners can run at peak efficiency without overheating.
