Why Solo Bitcoin Miners Overheat Even When Dashboard Temps Look Normal

Small solo Bitcoin miners are fun until they start acting like tiny space heaters with Wi-Fi.

Bitaxe, NerdMiner, NerdQaxe, NerdAxe, NerdOctaxe, and similar home lottery miners are compact, quiet compared to full-size mining equipment, and easy to place on a desk or shelf. That is also exactly why thermal problems can sneak up quickly.

The dashboard may show an ASIC temperature that looks acceptable. The VR temperature may not look dramatic. The fan may be spinning. The miner may even hash for a while. But that does not always mean the board is cooling correctly.

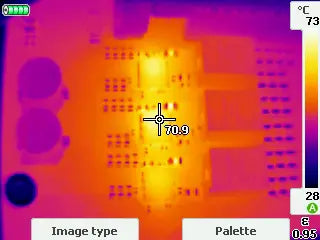

A thermal camera can show what the dashboard cannot: where the heat is actually concentrated.

Dashboard Temps Are Only Part of the Story

The web dashboard on a solo miner usually shows temperature values from specific sensor points. Those numbers are useful, but they are not a full thermal map of the device.

A small miner can have one area that is much hotter than the rest of the board while the main displayed temperature still looks normal. That hot spot may be around the ASIC chip, the voltage regulator area, the heatsink contact point, the PCB, or another component near the power stage.

This is why a miner can look fine in the dashboard but still behave badly under load.

Common Symptoms of Thermal Problems on Solo Miners

Thermal issues do not always show up as one obvious error. On small solo miners, the symptoms can look like many different problems:

• the miner enters overheat mode
• fan speed jumps very high or stays near maximum
• ASIC temperature rises quickly after startup
• VR temperature is high even when ASIC temperature looks acceptable
• hashrate drops after the miner warms up
• the miner restarts or becomes unstable under load
• thermal paste replacement does not fix the issue
• one side of the board feels much hotter than the rest
• the heatsink feels loose or uneven
• the miner works at lower frequency but overheats when tuned higher

These symptoms are common because small lottery miners have very little thermal margin. A tiny heatsink shift, weak mounting pressure, poor fan direction, dust buildup, or a bad thermal interface can make a big difference.

Why Thermal Paste Does Not Always Fix It

Replacing thermal paste is one of the first things many owners try. Sometimes it helps. Sometimes it does absolutely nothing, because the real world enjoys being annoying.

Thermal paste only helps if the problem is poor contact between the chip and the heatsink. If the issue is weak heatsink pressure, a warped heatsink, poor airflow, VRM heat, a damaged component, or a board-level problem, new paste alone will not solve it.

On small miners, the mounting system matters just as much as the paste. Even a slight gap between the chip and heatsink can cause fast temperature rise, unstable hashrate, or overheat mode.

VR Temperature Matters Too

Many owners focus only on ASIC temperature. That is understandable, but incomplete.

The VR temperature usually reflects the voltage regulator or power delivery area. If that area runs too hot, the miner can become unstable even when the ASIC temperature looks reasonable.

This is especially important on compact boards where airflow over the PCB is limited. A large heatsink may cool the chip, but the voltage regulator area still needs airflow. If the fan only cools the heatsink and does not move enough air across the board, VR temperature can become the real problem.

What a Thermal Camera Shows

A thermal camera does not replace electrical diagnostics, but it gives a much better view of heat distribution than dashboard readings alone.

Thermal imaging can help identify:

• localized hot spots around the ASIC chip
• uneven heatsink contact
• weak thermal paste coverage
• hot voltage regulator areas
• poor PCB airflow
• components heating faster than expected
• thermal differences after changing fan direction or heatsink pressure
• problems that only appear after the miner has been running for a while

The important part is the pattern. A single number on the dashboard tells you what one sensor reports. A thermal image shows how heat moves across the device.

Why Solo Miners Are More Sensitive to Cooling Problems

Solo lottery miners are small by design. That is part of their appeal. They can sit on a desk, shelf, workbench, or home mining display without needing a dedicated mining room.

But compact design also means less heatsink mass, smaller fans, tighter board layout, and less room for airflow mistakes. A minor cooling issue that might look small at first can quickly become a stability problem.

This is why proper cooling on a Bitaxe, NerdMiner, NerdQaxe, NerdAxe, or NerdOctaxe is not just about keeping the chip temperature low. The whole board needs to be thermally healthy.

When Dashboard Numbers Can Be Misleading

Dashboard temperatures are still useful. They help track trends, compare settings, and see whether the miner is operating within a reasonable range.

The problem is assuming that dashboard numbers show everything.

A miner can report acceptable ASIC and VR temperatures while still having a localized hot spot. It can also pass a quick test and then fail after heat builds up over time. This is why longer testing and visual thermal inspection are more useful than a quick glance at the web UI.

Thermal Imaging Is Not Just for Big Mining Equipment

Small miners deserve proper diagnostics too.

A solo miner may be a lottery device, a learning tool, or a desk miner, but it still has a real ASIC chip, real power delivery, real heat, and real failure modes. The size is smaller. The physics did not get the memo.

Thermal imaging helps catch problems before they turn into burnt boards, unstable miners, or repeated overheat errors.
